4TTEN

The classic attenuator with live performance sensibility. 4TTEN offers four easy-to-use passive attenuators with performance-friendly sliders for controlling attenuation amount. Offsets normalled to the input of each attenuator offer even more performance-ready control when you don't have a signal to attenuate.

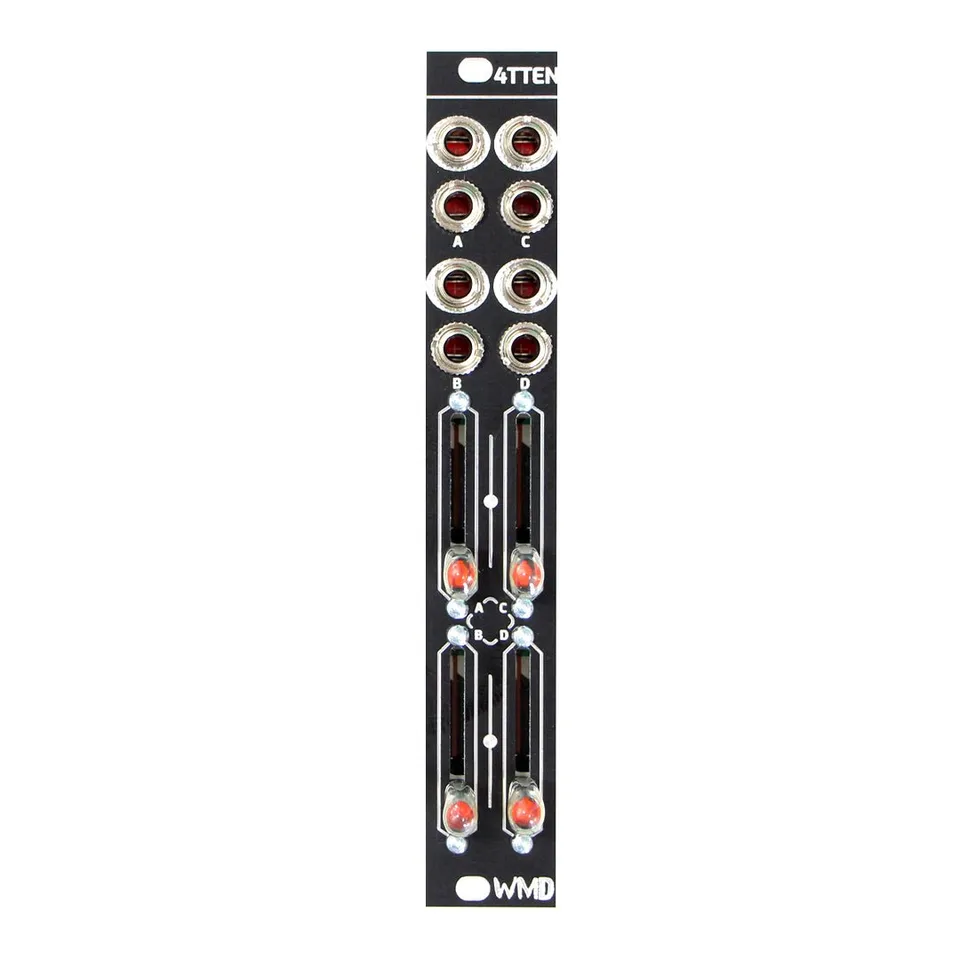

Patch the signal you would like to attenuate into the bottom jack of one of the A, B, C, or D groups. The corresponding output is the jack directly above the input. Move the slider with the same letter label to attenuate the signal. The bottom slider position is full attenuation. The top position is no attenuation.

With nothing patched to the input, patch the top jack of one of the A, B, C, or D groups. The voltage present at the output is controlled by the slider. The bottom position is 0V. The top position is 5V.
